Description

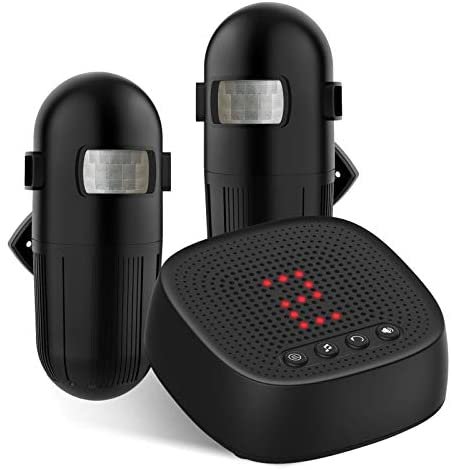

Having INNOVATE SMART LASER SENSOR is an excellent idea. It comes with everything you need to install it and is simple to set up. For the alarm that sounds, you can choose from a variety of sounds. In order to prevent any false alerts, you can configure the SMART LASER SENSOR for 3 different angles. You can choose how loud you want it to be by using the volume button. This would be ideal for older couples, single ladies, people who live down a long road, and single people in general.

Guard your family and property with this Smart Laser Sensor. Be informed the instant guests, vehicles, or potential intruders access your property’s driveway, front porch, gate, shed, pathways, or garage with a wireless driveway alarm. Excellent for alerting you if your children approach the swimming pool or other places they shouldn’t be. Up to 1000 feet/300 meters can separate each sensor from the receiver (depending on obstacles and environment).

The Smart Laser Sensor is Fully expandable and customizable. Create up to four distinct detection zones with four sensors each to protect your property with up to 16 sensors overall per receiver. To help you take prompt action, LED lights on the receiver show you which sensor zone has detected movement. 36 AVAILABLE MELODIES CAN BE CUSTOMIZED FOR THE 4TH ZONE ALARM SOUND. Install the PIR sensor in zone 4 if you require custom ringtones.

Avoid having false alarm by using windows with this adjustable Smart Laser Sensor. The passive infrared (PIR) sensor’s cover can be rotated to change the detection angle between 30°, 45°, and 60°. False alerts from passing vehicles, tiny animals, or even blowing leaves can be avoided with proper calibration. Dead leaves won’t trigger the Smart Laser Sensor because it uses passive infrared technology, which only detects motion AND heat.

The Smart Laser Sensor is a DIY & SUPER EASY TO INSTALL. Setup only takes a few minutes. Posts, walls, fences, and trees can all be used to mount the outside motion sensors. Place the sensor anywhere on your property, and when something moves within 24 feet of the angled eye of the sensor—a human, a car, or a large animal—a signal is transmitted to the receiver, which will ding in your house like a long-range doorbell.

The PIR sensor of INNOVATE Smart Laser Sensor has undergone thorough testing in severe conditions and is composed of double waterproof/weatherproof material that is rated IP65. Both indoor and outdoor use.

Key Features

• Adjustable beam distance – Creates up to 60 ft long invisible infrared beam
• Adjustable chime volume
• Can be used as an invisible playpen or to scare off would-be intruders in Alarm mode
• 4 selectable frequencies to reduce interference, Up to 50ft (15m) sensing distance
• Small size for a less conspicuous installation, Simple to install
• Built-in AGC control to filter out lighting disturbances, Signal strength indicator for easier alignment
• LED indicators for power, signal strength, and trigger; Weatherproof for outdoor as well as indoor use (IP65)
• Mounting hardware included, Dimensions: 3-11/16″ x 2-3/8″ x 1-13/16″, Weight: 2.6-oz

Specifications of Smart Laser Sensor

• Number of Beams: 1
• Current Draw: Transmitter 15mA@12VDC/Receiver 30mA@12VDC
• Infrared LED Wavelength: 940nm
• Operating Voltage: 10~24VDC
• Interrupt Speed: 50ms
• LED Beam Spread Angle: Approximately ±10°
• LEDs-Red: Indicates transmitter and receiver are not aligned or beam is broken (Alarm)
• LEDs-Yellow: Indicates receiver’s signal is weak or beam is broken (Signal)
• LEDs-Green: Indicates connected to power
• Output: NO/NC relay (set by jumper, default is N.C.) 0.5A@30VAC/VDC
• Enclosure: IP65
• Operating Temperature: -13°~131°F
• Operating Humidity: 0~95%
• Dimensions: 3-11/16″ x 2-3/8″ x 1-13/16″
• Weight: 2.6-oz
